Products

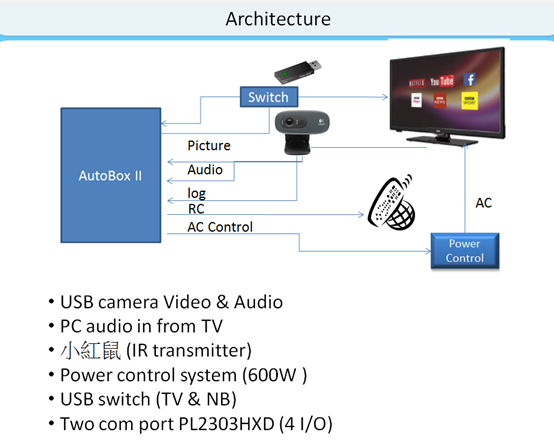

★ Auto Remote Debug System (Box)

Product Description:

Auto Stress Test Control Box is a remote debug system which can connect many sets of TVs and flash disks at the same time.
Monitoring and operating these devices through computer and web camera, so that it can help remote engineers to test and debug TVs/devices problems.



★ The Patented Technology for Remote Triple Control Device

Patented Technologies:
● Motion Sensing Remote Control Device
● Speech Remote Control Device

Patent Certificate No.:
● The U.S. Patent No.: 9486712 / 15/634,627
● China Patent No.: 2137018
● Taiwan Patent No.: I500440 / I492776
● Other Countries Patent Pending.

Patent Application:
● Remote Control Car / Ship
● Interactive Robot
● Transformer Series Product
● Batmobile
● Star Wars Peripheral Product
● Pixar Animation Series Toy
● Other Licensed Toy

Demo Videos:


★ Remote Control the LEDs Flashing and Sound Effect of the Wearing Device

Patent Certificate No.:
● China Patent No.: 4068687
● Taiwan Patent No.: M497733
● Other Countries Patent Pending.
● All Rights Reserved.

Product Appearance:
● Tag, Flash Stick, Bracelet, Wristband, Wristlet, Hand Ring, .... any funny & cool shape.

Product Features:
● Wide Control Area
● Dual Control Mode
● IP Partitions Setting
● LED Full Color Effects
● Customized Content for Fans Collection
● Built-in Music & Advertising Sponsorship

Demo Videos:


★ Touch Panel Solution

Main Technologies:
● Touch Panel System Integration
● Firmware Setting and Tuning
● Driver Support Windows/Linux/Android/....
● Support Multi-touch Functions
● Soft and Gentle Touch Detectable
● Dust and Water-resistant
● Durability, Sensitivity and Transmissive Design
● Help to link TP/LCD to customer's devices with various applications

Specifications:
● Projected Capacitive Touch Panel: 3.2" ~ 10.1"
● Multi-touch Resistive Touch Panel: 8.9" ~ 20.1"
● Dual-touch Resistive Touch Panel: 2.5" ~ 7.0"
● Structure: G/G, G/F/F, F/F,....
● Controller IC: Various Brands Controller IC Available
● I/O Number: Max 64 Channels
● Support Resolution: 4096 x 4096 (MAX)
● Interface: I2C / SPI / USB
● Input Method: Finger / Capacitive type Pen / Multi-touch
● User Defined Detection Sensitive Area
● Light Transparency: 85% (MIN)

★ Intraoral Camera Handle

Specifications:
● Video Input: High Pixels Camera
● Illumination Source: 6 Ultra-Bright White LED
● Video System: NTSC / PAL
● Display Resolution: 960(H) X 240(V)
● Storage Device: Micro SD Card
● 360 degree Rotational View
● Li-ion Battery Module with 7.2V 450mAh Capacity
● Display Screen: 2.5 inch TFT LCD with phone jack plug-in
● OSD Fuctions:
  - Video Mirror / Upside Down
  - Brightness / Contrast / Hue / Saturation / Sharpness / Reset
● Operating Environment:
  - Ambient Temperature: -20℃ to + 50℃
  - Relative Humidity: 30 % to 90 %
● Transportation and Storage Environment:
  - Ambient Temperature: -20℃ to + 60℃
  - Relative Humidity: 10 % to 90 %

★ PCI Video Capture Card

Specifications:
● Video Input: 4 Cameras
● Interface: PCI
● Video System: NTSC / PAL
Video Codecs: H.264
Video Resolution: NTSC: 704 x 240; PAL: 704 x 288
● Sampling Rate: NTSC: 120 fps; PAL: 100 fps
● Compression Bit Rate: 16K bps2M bps
Power Consumption: Less than 2 Watts

Features:
Software with Graphical User Interface (GUI)
Multiple View Mode optional
Up to 32 channels simultaneous display and recording at CIF resolution
Automatic night mode view for better image quality under low light condition
Removal of image dark edges is supported
● Privacy Masking can protect privacy information on video images
● On Screen Display (OSD) content and location adjustable
● E-Map with video view available for corresponding spot
● Operation log and system information can be checked
● One-click snapshot, intelligent search and view in “Snapshot Manager”
● User defined motion detection sensitivity and area
● Continuous, Scheduled, Motion-triggered and Alarm-triggered Recording
● Motion triggered alarm and remote playback function available
● Direct PTZ dome to preset motion or alarm detection
● Support Windows2000/XP/2003/VISTA OS

★ Graphic On Screen Display Solution

Applications:
● Consumer Entertainment Product
● Vision Fitness Equipment
● Puzzle Game / Toy
Home Security & Safety Alarm System
POS, Kiosk, Signage, KVM…. Panel for Niche APs
● Automotive A/V System, Boombox
Video Signal Processing Box for Car Safety

Features:
Input / Output Video
  - 24-bit RGB or 8-bit CCIR-601/656
  - QVGA ~ WXGA display resolution
  - Analog CVBS / RGB Input Available
  - TV / TTL / LVDS / RGB / PbYPr Output Available
OSD Planes
  - Video Plane x1
  - Graphic / Background Plane x 2
  - Font Plane x 1
  - Text Table (Menu) x 1
  - Icon Plane x 1
● 448 Single-Color Fonts
● 64 Multi-Color Fonts
● 16 Icon Display Locations
● 256 Color Look up Table
● Effect
  - Font Blinking
  - Bit Inverse
  - Foreground / Background Color
  - Blending
  - Fade in / Fade out
  - Transparent

★ Monitoring Watch with OSD Function

● 2.5" / 5.0" / 5.6" TFT LCD Screen
● NTSC / PAL System Auto Recognition
● OSD Control Menu
● Image Mirror Function
● Earphone Audio Output
● Low Battery Warning
● User Defined Auto Sleep Function
● Support Balun in/out Function (Optional)
● Inclined Plane Design to Avoid Reflection
● 4 Size Design to Avoid Mirror Surface Scratch
● Test Pattern Video Output (N/P available): Color Bar Chart & Gray Scale Chart
  (Check cable if broken circuit or short circuit happened)
● Multi-Language User Interface
  (English, Spanish, French, Portuguese, Italian, Chinese, Japanese)
● Power Supply: 6 x AAA Battery
● Made in Taiwan

★ High Performance CCD Camera Module (SS-HQ1)

● Image Device: 1/3”Sony Super HAD Color CCD
● TV System: NTSC / PAL
● Sync. System: Internal
● No. of Pixel: 768( H ) x 494( V ) / 752( H ) x 582( V )
● Resolution: 560 TV Lines
● Min. Illumination: 0.1Lux
● S / N Ratio: More than 50 dB
● Electronic Shutter: 1/60 ( 50 ) to 1 / 100,000 sec.
● Gamma: 0.45
● White Balance: Auto (ATW)
● AGC: Automatic
● BLC: Auto
● Built-in Auto Iris Function
● Power Supply: DC 12V ~ 18V
● Consumption Current: 135mA
● Video Output: 1.0 Vp-p Composite, 75Ω
● Dimensions: 38mm x 38mm
● Oval-shaped hole: 32mm x 32mm
● Un-leaded ENIG 3M (for ROHS)



★ Detergent-free Laundry Ball

● Clean all dirt in clothes without any detergent.
● Soft TPR housing won't harm your favorite clothes.
● Save detergent expense.
● No expiration date.
● Decrease global warming effect.
● Made in Taiwan.

● Nano-Silver and Far Infrared Ceramic Pellet inside.
● Green product made by advanced Japan technology.

★ PSR (Portable Security Recorder)

● Video Format: NTSC / PAL
● Video Codec: MPEG4 file format
● Recording Mode: Motion Detection / Continuous
● Recording Frame Rate: 30 fps
● Storage Media: SD memory card
● Serial Port: Support USB 2.0
● Power Supply: DC 12V
● User Interface: Remote controller
● TFT LCD Display: Option

★ Vehicle RearView Camera Module

● Module Size : Ø 20mm x 15(L)mm
● Image Device: 1/3" Sony CCD sensor
● Number Pixel: NTSC:510x492, PAL:500x582
● Resolution: More than 330 TVL
● Min. Illumination: 0.3 Lux / F1.2
● S/N Ratio: More than 48dB
● Gamma Correction: 0.45
● Electronic Shutter: 1/60(1/50)~1/100,000
● White Balance: Auto
● Gain Control: Auto
● Video Output: 1 Vp-p / 75 Ohms
● Power Consumption: 90mA
● Power Management: Embedded in module
● Operating Temp.: -20°C ~ 70°C
● Power Supply: DC 12V

★ VideoNow Personal Video Player

● The best toy of 2004
● Colorful, on-the-go entertainment
● Full-color screen and backlit display
● Let you watch a wide variety of high quality PVDs
● Custom designed video / audio file format
● Unique video / audio processor ASIC
● Single chip solution for CD deck
● Internal speaker and headphone jack
● Auto-sleep feature
● Power supply: 3 x AA battery or DC 4.5V
● Price competitive for any portable DVD player
